Stainless steel four-grid cleaning cabinet overview

This 1900mm high stainless steel four-grid cleaning cabinet is specially designed for the management of cleaning tools in public places. It is made of 201/304 double series stainless steel to build a professional storage system of “four-grid independent cabinet + adjustable laminate.” The cabinet size is 1900 × wide, 900 × deep, 400mm, and the depth is adapted to the length of the cleaning tool handle (≤ 380mm). The height covers the standing operation range (300-1800mm from the ground), realizing the classification and orderly management of brooms, mops, cleaners, and trash cans.

The fully enclosed cabinet door is equipped with a ventilation design, which is moisture-proof and corrosion-resistant and avoids the spread of odors. It is suitable for scenes such as hotels, hospitals, enterprises, and commercial complexes. Through material optimization and functional zoning, the management efficiency of cleaning tools and environmental cleanliness is improved.

Characteristics of stainless steel four-grid cleaning cabinet

1. Dual material durable system
   • 201 Economy Stainless Steel
     • Material characteristics: 201 stainless steel substrates containing Cr ≥ 17% are selected, with a thickness of 0.5mm, lightweight, and 40-50% lower cost than 304 models. It is suitable for dry environments, such as northern office buildings and ordinary shopping malls.
     • Surface treatment: brushed with sandbelt satin to form a non-slip surface, with nano anti-oil coating. Daily stains (such as water stains and detergent residues) can be directly wiped with a damp cloth, and the scratch resistance grade is 2H.
   • 304 medical-grade stainless steel
     • Material characteristics: Cr18-20%, Ni8-10% stainless steel, plate thickness 0.5mm, corrosion resistance is 3 times that of 201, suitable for humid environments (such as coastal hotels, hospital cleaning areas, and underground garages).
     • Safety advantages: through food contact grade certification, can store after-disinfection cleaning tools, in line with hospital sensory control standards.
2. The four-grid independent storage system
   • Zoning design
     • Tool storage compartment:

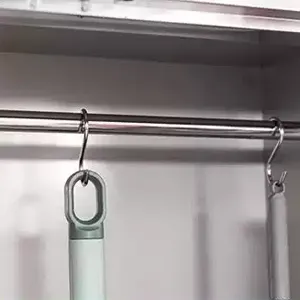

       • Single grid width 450mm, depth 380mm, built-in stainless steel hanging rod (load-bearing 15kg), can hang brooms and mops (handle length ≤ 1.5m), the bottom is equipped with a 30mm high drain table (tilted 5 ° design), residual moisture is discharged through the drain hole at the bottom of the cabinet (φ 10mm).
     • Consumables storage compartment:
       • The single compartment is equipped with adjustable laminates, which can store detergent buckets (single-layer 2 buckets) or 20L trash cans (upside-down storage), and the laminates bear 20kg (uniform load).
     • Sealing and ventilation

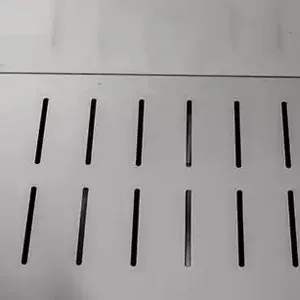

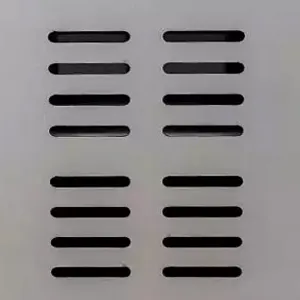

       • The cabinet door is sealed with magnetic silicone seals to isolate odors when closed; 4 φ 50mm ventilation holes (built-in insect net) are set on the top of the cabinet to maintain internal air circulation and reduce the growth of mold.
3. Industrial-grade process details
   • Seamless welded structure
     • Adopt laser full welding technology, cabinet seam ≤ 0.1mm, internal corner rounded R8mm treatment, no sanitary dead angle, easy-to-use high-pressure water gun flushing.
   • Double surface treatment
     • Satin brushed: The surface is delicate and non-slip, with strong weather resistance, suitable for high-frequency contact cleaning rooms, and fingerprints and stains can be quickly wiped and removed.
     • Matte matte (optional for customization): The anti-fingerprint effect is increased by 50%, which is suitable for the matte decoration needs of high-end hotels.
4. Humanized function configuration
   • Adjustable foot system: The bottom is equipped with 4 ± 30mm adjustable steel feet, suitable for uneven ground (such as floor tile height difference, slope cleaning room); floor-to-ceiling installation does not require wall load-bearing and has strong stability.

Parameters of stainless steel four-grid cleaning cabinet

Parameter	Specification
Material	201/304 Stainless Steel (Body: 0.5mm, Shelves: 0.5mm), the thickness can be customized according to a user’s request
External Dimensions	1800H×900W×400D (mm)，Can be customized according to a user
Number of squares/type	4 squares
Tool grid hanging rod load bearing	15Kg/rod
Consumables Grid Load-bearing	20Kg/layer (uniform load)
Surface Treatment	Satin brushed/matte
Operating Temperature	-30℃ to 80℃ (304 grade) / -10℃ to 60℃ (201 grade)

Application of stainless steel four-grid cleaning cabinet

1. Hotel/commercial complex
   • Cleaning tool management: 304 models are suitable for humid bathroom cleaning rooms, dry and wet mops can be hung in the hanging area, cleaners and garbage bags can be stored in the storage compartment, locks protect chemical safety, and ventilation is designed to avoid the spread of odors to public areas.
   • Scene advantage: 1800mm height makes full use of vertical space, 400mm depth is suitable for narrow areas of corridors, satin brushed models are easy to clean, and meet the hotel’s daily disinfection and sterilization requirements.
2. Hospitals/medical facilities
   • Sensory control requirements: 304 resistant medical disinfectants (such as chlorine-containing disinfectants, 75% alcohol), tool grid drain table to prevent the growth of bacteria, and consumables grid to store disinfected rags and gloves in layers, in line with hospital infection control standards.
   • Special configuration: optional ultraviolet disinfection lamp (installed on the top of the tool grid), regular disinfection and sterilization mop and other tools to improve the hygiene level of cleaning tools.
3. Enterprise/factory
   • Workshop cleaning: 201 models are suitable for drying workshops, with tool grids for hanging industrial brooms and dust pushes, consumables grids for storing lubricating oil and cleaning cloths, reinforced ribs designed to bear load-bearing industrial-grade tools, and adjustable feet to adapt to uneven floors in the workshop.
   • Efficiency improvement: The four-grid partition is clear, allowing cleaners to quickly access corresponding tools, reducing search time and making it suitable for use in large factories and storage centers.
4. Public facilities
   • Subway/high-speed rail station: 304 models are resistant to salt spray corrosion (suitable for coastal cities), locks prevent tool loss, ventilation hole design reduces mold problems in humid environments, and is suitable for cleaning rooms in public areas with high traffic.

Company profile

Luoyang Geen Office Furniture Co., Ltd. is a professional manufacturer of high-quality stainless steel furniture. The company is equipped with professional production equipment and production lines, and is supported by a team of more than 60 experienced experts.

We offer various stainless steel products, including load-bearing shelves, tool cabinets, medicine cabinets, locker cabinets, file cabinets, office desks, commercial furniture, office furniture, kitchen furniture, fire equipment cabinets, etc. Our products are widely used in schools, offices, factory workshops, medical institutions, production lines, warehouses, gyms, clubs, lounges, cloakrooms, changing rooms, storage cabinet rooms, sports facilities, greenhouses, as well as other application scenarios.

We are dedicated to providing you with high-quality stainless steel furniture. If you have any questions about our products, please feel free to contact us at any time. We welcome you to discuss cooperation with us.

Tel:+86 13383895687

Wechat: +86 13383895687

Whatsapp: +86 13383895687

Email: sales@stainlesssteelcabinets.net

Payment method

T/T, Western Union, Paypal, Credit Card etc.

Shipping method

Packaging standards:

-Depending on the product and quantity, regular packaging is film and corrugated boxes. Mail parcels and other special packaging can be customized according to your needs.

– Mode of transportation:

– Air freight, sea freight, express delivery, according to your requirements.

Stainless steel four-grid cleaning cabinet FAQ

Q1: Can the cabinet door be customized with glass windows?

• Support customization and specific requirements need to be provided.

Q2: How to clean the internal water?

• The bottom water tray can be pumped out for cleaning.

Q3: Can I customize the number or size of squares?

• Support customization, and drawings are required for customization.

Q4: Will the matte matte model affect the cleaning effect?

• No. The matte surface has a better anti-fingerprint effect, and the nano-coating enhances the anti-fouling ability. The detergent residue can be easily wiped. The maintenance cost is the same as that of the satin-brushed model, which is suitable for high-end places with aesthetic requirements.

Q5: Will the 201 model rust in a humid environment?

• 201 models are suitable for environments with humidity ≤ 70%. 304 models are recommended for high-humidity areas (such as underground garages). Clean up the residual moisture of the tools in time after daily use, and wipe the inside of the cabinet with a dry cloth regularly to reduce the risk of rust.
