Overview of fire brigade special hangers

It is specially designed for the storage of fire brigade equipment to meet the centralized hanging needs of heavy equipment such as fire-proof clothing, helmets, boots, etc. The main body is made of 201/304 stainless steel, the frame is integrally welded and formed, and the laminate load-bearing area is thickened. It is suitable for quick access and daily maintenance of fire-fighting equipment. The shelf height matches the standard size of the fire cabinet, and the drain hole is reserved at the bottom to avoid water corrosion.

The characteristics of fire brigade special hangers

1. Corrosion-resistant structure

• 304 stainless steel is resistant to fire truck cleaning agent and foam fire extinguishing agent corrosion, and 201 stainless steel needs to be regularly coated with anti-rust oil for maintenance.
• Double polishing at the weld, no burr scratches protective clothing.

2. Heavy-duty load-bearing design

• Single-layer static load-bearing ≤ 150kg and the laminate is equipped with anti-skid rubber strips to prevent helmets and gas cylinders from rolling and falling.
• The bottom of the column is reinforced with a shaking amplitude of less than 1cm (under full load conditions).

3. Fire scene adaptation

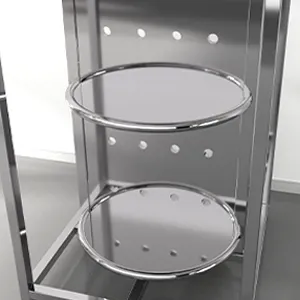

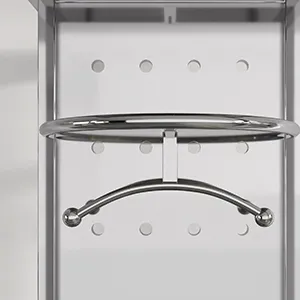

• The top hanger hangs fire-proof clothing; the middle layer is equipped with a helmet bracket and the bottom storage board stores boots.
• A 20cm gap is reserved on the back, which is compatible with the wall installation of the fire cabinet.

4. Quick drainage and cleaning

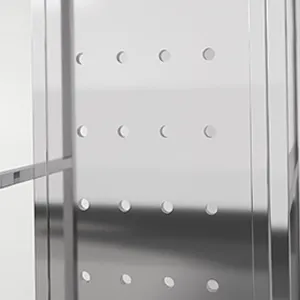

• Laminate stamping water leakage hole (aperture 8mm), bottom water tray removable (optional accessories), direct flushing without water accumulation.

Parameters of fire brigade special hangers

Parameter	Specification
Material	201/304 Stainless Steel (Column: 0.9mm, Shelf: 0.5mm) , the thickness can be customized according to a user’s request
Dimensions	1950H×650W×650D (mm)，Can be customized according to a user
Layer Configuration	4 layers (1 hanging layer + 3 storage layers)
Load Capacity per Layer	≤150kg (evenly distributed)
Surface Treatment	Brushed anti-rust / Electropolished (optional for 304 grade)
Operating Temperature	-30℃ to 80℃ (304 grade) / -10℃ to 60℃ (201 grade)

Application of Fire Brigade Special Hanger

1. Fire station equipment room

• Centralized management of fire-proof clothing: the hanging clothing layer is suitable for heavy-duty fire-fighting combat clothing (≤ 15kg/set), and the spacing of the crossbars is optimized to avoid clothing extrusion folds.
• Helmet and gas cylinder positioning: fixed fire helmet with middle bracket, air breathing apparatus (≤ 30kg/piece) stored on the bottom shelf, non-slip pad to prevent equipment from sliding.
• Quick emergency response: hang and place according to the duty team division, and complete the full set of equipment access within 30 seconds.

2. Training ground changing area

• High-intensity use: hundreds of equipment accesses every day, laminate punching holes are designed to drain and dry quickly to avoid sweat corrosion.
• Safety protection: The column is rounded to prevent trainers from scratching during running.

3. Fire engine backup compartment

• Car shock-resistant model: silicone shock-absorbing foot pads are installed to withstand road bumps and prevent oxygen cylinder collisions.
• Space adaptation: the depth of 650mm matches the standard fire truck warehouse, and the multi-layer structure stores spare protective clothing and dismantling tool kits.

4. Emergency fire points for chemical enterprises

• Corrosion-resistant storage: 304 stainless steel can withstand acid and alkali splashing, store chemical-proof clothing and acid and alkali-resistant boots (directly hang and drain after rinsing).
• Hazardous chemical compatibility: no static electricity accumulation on the surface of the laminate, avoiding the risk of flammable gas environmental sparks.

5. Field temporary command points

• Rapid deployment: Pre-install the positioning template, complete the ground punching and fixing in 15 minutes, and adapt to the equipment in the temporary tent.
• Harsh environment tolerance: no brittle cracking in freezing weather (304 models) at -30 ° C, and can be washed directly with a water gun after a sandstorm.

Company profile

Luoyang Geen Office Furniture Co., Ltd. is a professional manufacturer of high-quality stainless steel furniture. The company is equipped with professional production equipment and production lines, and is supported by a team of more than 60 experienced experts.

We offer various stainless steel products, including load-bearing shelves, tool cabinets, medicine cabinets, locker cabinets, file cabinets, office desks, commercial furniture, office furniture, kitchen furniture, fire equipment cabinets, etc. Our products are widely used in schools, offices, factory workshops, medical institutions, production lines, warehouses, gyms, clubs, lounges, cloakrooms, changing rooms, storage cabinet rooms, sports facilities, greenhouses, as well as other application scenarios.

We are dedicated to providing you with high-quality stainless steel furniture. If you have any questions about our products, please feel free to contact us at any time. We welcome you to discuss cooperation with us.

Tel:+86 13383895687

Wechat: +86 13383895687

Whatsapp: +86 13383895687

Email: sales@stainlesssteelcabinets.net

Payment method

T/T, Western Union, Paypal, Credit Card etc.

Shipping method

Packaging standards:

-Depending on the product and quantity, regular packaging is film and corrugated boxes. Mail parcels and other special packaging can be customized according to your needs.

– Mode of transportation:

– Air freight, sea freight, express delivery, according to your requirements.

Fire brigade special hanger FAQ

Q1: How to choose 201 and 304 stainless steel models?

• Type 201: Suitable for dry indoor environment; need to apply anti-rust oil every month;
• Type 304: Can be used directly in flushing areas and chemical plants.

Q2: Can the clothes hanging rod bear the load of the oxygen cylinder?

• The load-bearing capacity of a single rod is less than or equal to 50kg, and the bottom storage board (with fixed straps) should be used to hang the gas cylinder.

Q3: How to install uneven ground?

• The accessories include adjustable ground feet (± 3cm height compensation), and the ground needs to be padded when the inclination is > 2 °.

Q4: Can the drying function be added?

• Customized heating model (40 ° C constant temperature drying module built into the laminate), 220V power supply needs to be reserved.

Q5: How to deal with long-term water stains?

• 304 models can be cleaned directly with a steel wire ball; 201 models need to avoid scratching with complex objects and dry water stains in time.
