Stainless steel fire cabinet overview

The stainless steel fire cabinet is specially designed for centralized management and quick access to fire equipment. It is integrally welded and formed with 201/304 stainless steel. The interior of the cabinet is divided into multiple layers, which is suitable for standardized storage of fire extinguishers, fire axes, respirators and other equipment. The cabinet door is equipped with double keyhole anti-pry hinges, the top is fitted with ventilation holes to avoid airtight moisture, and the bottom is raised by 15cm to prevent water accumulation on the ground. It is suitable for factories, warehouses, public places and other scenes.

Characteristics of stainless steel fire cabinets

1. Corrosion-resistant structure

• 304 stainless steel models are resistant to fire foam, acid and alkali cleaning agents, and 201 models need to be sprayed with anti-rust oil regularly (once a quarter is recommended).
• Welding seam polishing treatment, no burr scratches equipment.

2. Functional partition design

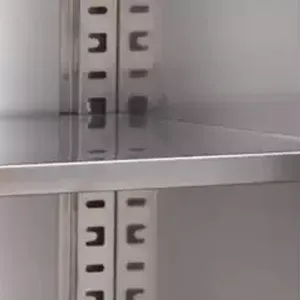

• The main cabinet is divided into three layers: the upper layer is hung with fire-proof clothing (hanging rod bearing ≤ 20kg), the middle layer rack is fixed with a fire extinguisher, and the lower layer drawer stores first aid kits and gas masks.
• Fire axe card slot attached to the side panel (with anti-theft chain).

3. Security Protection

• The cabinet door is equipped with a high temperature-resistant sealing strip (300 ° C/2 hours) to delay the spread of fire.

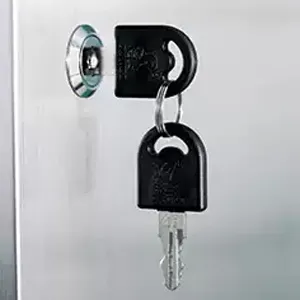

• Double lock cylinder + emergency window breaker integrated design, quick opening within 5 seconds.

4. Environmental adaptation

• Reserved drainage holes (aperture 12mm) at the bottom, which can directly flush the accumulated water in the cabinet.
• Optional UV protection coating for outdoor models (fade resistance level 5).

Parameters of stainless steel fire cabinet

Parameter	Specification
Material	201/304 Stainless Steel (Cabinet: 0.5mm, Shelves: 0.5mm) , the thickness can be customized according to a user’s request
External Dimensions	1800H×1500W×400D (mm)，Can be customized according to a user
Internal Capacity	0.8m³ (with adjustable shelves)
Load Capacity	≤80kg per layer (Reinforced middle layer ≤120kg)
Fire Resistance	Cabinet withstands 260℃ for 1 hour
Surface Treatment	Brushed anti-rust / Sandblasted (optional for 304 grade)
Operating Temperature	-30℃ to 80℃ (304 grade) / -10℃ to 60℃ (201 grade)

Application of stainless steel fire cabinet

1. Factory floor and warehouse

• Hazardous chemical storage area: 304 stainless steel is resistant to acid and alkali corrosion, stores anti-chemical clothing, emergency eye washers, neutralizing agents, and the cabinet door is marked with the hazardous chemical leakage disposal process.
• Fixed-point configuration of the equipment room: installed against the wall in the power distribution room and boiler room, with a built-in dry powder fire extinguisher (8kg), fire sandbox, and moisture-proof brackets on the ground.

2. Underground parking and garage

• Humid environment adaptation: The bottom elevation design avoids water soaking, and the side panel reflective strip + LED emergency light (optional) improves visibility in dark environments.
• Vehicle-mounted fire-fighting equipment: partition storage vehicle fire extinguishers, triangular warning signs, window breakers, and emergency guidelines for vehicle spontaneous combustion are attached to the cabinet door.

3. Schools and public places

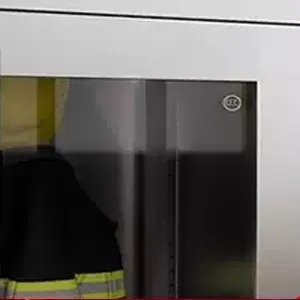

• Teaching building corridor: transparent acrylic window (customized) to display the location of fire extinguishers and fire axes, allowing students to identify in case of emergency quickly.
• Gymnasium/auditorium: loudspeakers are installed on the top floor, alarms are broadcast synchronously in the event of a fire, and fire blankets (≤ 10) are stored on the middle floor.

4. Petrochemical and energy facilities

• Explosion-proof storage: custom copper alloy lock + non-spark coating, storage explosion-proof flashlight, gas detector, static dissipation ≤ 0.3 seconds.
• Open-air tank area: outdoor UV protection model, with a sunshade on the top of the cabinet to withstand sun and rain, and store fire hoses and foam guns.

5. Commercial complexes and shopping malls

• Central control room linkage: integrated smoke alarm (optional) automatically unlocks the cabinet door after the fire is triggered, shortening the emergency response time.
• Key defense in the catering area: kitchen-specific fire blankets and anti-fuel agents are added to the cabinet, and the high-temperature resistance of the compartment reaches 300 ° C.

Company profile

Luoyang Geen Office Furniture Co., Ltd. is a professional manufacturer of high-quality stainless steel furniture. The company is equipped with professional production equipment and production lines, and is supported by a team of more than 60 experienced experts.

We offer various stainless steel products, including load-bearing shelves, tool cabinets, medicine cabinets, locker cabinets, file cabinets, office desks, commercial furniture, office furniture, kitchen furniture, fire equipment cabinets, etc. Our products are widely used in schools, offices, factory workshops, medical institutions, production lines, warehouses, gyms, clubs, lounges, cloakrooms, changing rooms, storage cabinet rooms, sports facilities, greenhouses, as well as other application scenarios.

We are dedicated to providing you with high-quality stainless steel furniture. If you have any questions about our products, please feel free to contact us at any time. We welcome you to discuss cooperation with us.

Tel:+86 13383895687

Wechat: +86 13383895687

Whatsapp: +86 13383895687

Email: sales@stainlesssteelcabinets.net

Payment method

T/T, Western Union, Paypal, Credit Card etc.

Shipping method

Packaging standards:

-Depending on the product and quantity, regular packaging is film and corrugated boxes. Mail parcels and other special packaging can be customized according to your needs.

– Mode of transportation:

– Air freight, sea freight, express delivery, according to your requirements.

Stainless steel fire cabinet FAQ

Q1: What is the price difference between 201 and 304 fire cabinets?

• Under the same size, 304 models are 40-50％ more expensive, but their lifespan is 2-3 times longer. They must be selected for chemical plants and coastal areas.

Q2: Can the cabinet be installed directly against the wall?

• You need to reserve a 5cm heat dissipation gap and add a moisture-proof pad when the wall is wet.

Q3: Is the size of the fire extinguisher storage compartment adjustable?

• The middle baffle can adjust the buckle position according to the specification of the fire extinguisher (2/4/8 kg), and the spacing error is less than or equal to 2cm.

Q4: How to deal with the rusting and stuck of the cabinet door lock cylinder?

• 304 models are sprayed with WD-40 lubrication; 201 models need to be dripped with anti-rust oil every six months, and the lock body should be replaced when the rust is severe.

Q5: Can you customize the enlarged size to store the fire hose?

• Support depth expansion to 600mm, built-in reel rack, single cabinet accommodates 2 20-meter water belts.
